Ano Commercial Building
Project Description: The commercial-official Tav complex located in Sa’adat Abad, at the corner of first and 3rd streets in Tehran includes 6 parking floors, 3 commercial and 9 official floors which are regarded as the best qualified official-commercial sectors due to being located in the best part of Sa’adat Abad.
General building information:
The landsize: 1280 square meters
The landsize after amendment: 640 square meters
The total infrastructure area: 9800 square meters
Useful Commercial area: 2000 square meters
Useful Official area: 3500 square meters
Floors number: 18
Commercial portals number: 9
Official portals number: 18
Technical/executive features:
1- The building was designed based on the newest 2800manual edition of Iran earthquake and the tenth chapter of national building provisions using scratching frame to resist earthquake.
2- The building has metal frame with nuts and bolts and steel deck ceilings.
3- The concrete retaining wall is built in all the undergrounds at the 4 corners of the building.
4- Two foreign elevators with the capacity of 13 people.
5- To accelerate communication in parking’s floors, lifter jack is used for moving cars.
6- The project design was accomplished by a group of best architecture engineers in Tehran. Curtain wall system is used in the building front composed of glass and Porcelain ceramic.

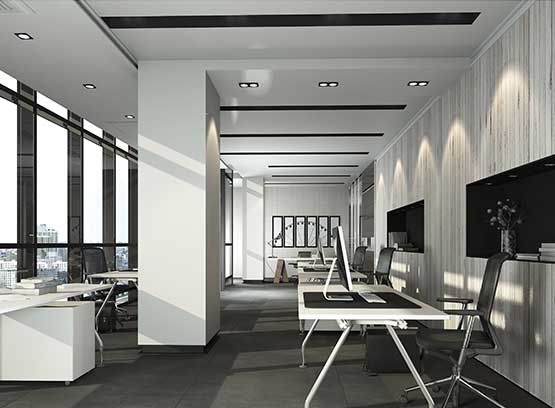

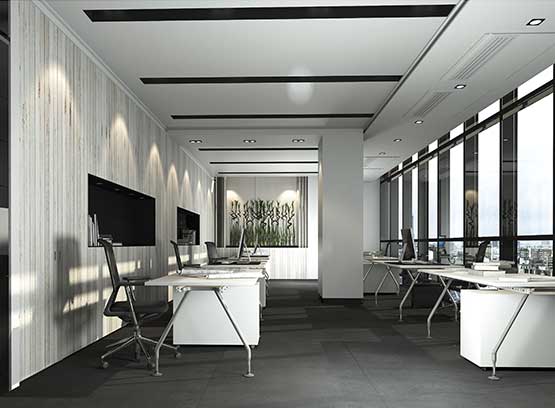

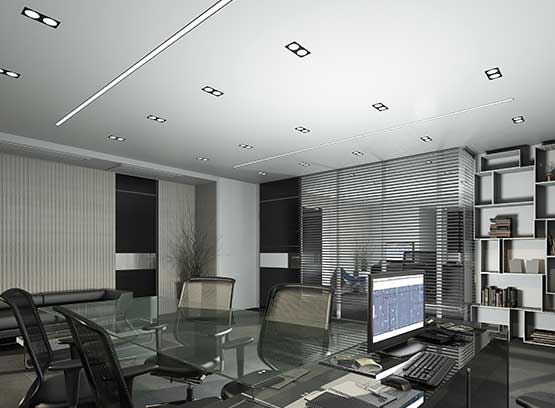

7- Official units were designed and delivered in the flat form with no partitions and each unit includes WC, canteen and management room service.
8- In the commercial units
Total area (square meters) | Half a floor area (square meters) | First floor area (square meters) | |
47 | — | 47 | Commercial portal No.1 |
302 | 102 | 300 | Commercial portal No.2 |
164 | 79 | 85 | Commercial portal No.3 |
106 | 41 | 65 | Commercial portal No.4 |
147 | — | 147 | Commercial portal No.5 |
404 | 139 | 265 | Commercial portal No.6 |
264 | 158 | 106 | Commercial portal No.7 |
278.5 | 93.5 | 185 | Commercial portal No.8 |
176 | — | 176 | Commercial portal No.9 |
178 | — | — | Official north portal |
190 | — | — | Official south portal |
